In this part we will complete the CSVDataStore. At the end of this section we will have a full functional CSVDataStore supporting both read and write operations.
The DataStore API provides three categories of public methods involved in making content writeable.
The infrastructure to support this functionality is quite extensive. A few highlights from the above diagram:
Now that we are going to be writing files we can fill in the createNewDataStore method.
Open up CSVDataStoreFactory and fill in the method createNewDataStore( Map params ) which we skipped over earlier.
private static final Logger LOGGER = Logging.getLogger("org.geotools.data.csv");
public DataStore createNewDataStore(Map<String, Serializable> params) throws IOException {
File file = (File) FILE_PARAM.lookUp(params);
if (file.exists() ){
LOGGER.warning("File already exsists: "+file);
}
return new CSVDataStore(file);
}
The above code snippet introduces a GeoTools Logger we can use for warnings.
Because GeoTools is a well mannered library it can be configured to use different logging engines. This allows it to integrate smoothly with larger projects.
To see this change in context review CSVDataStoreFactory.java from the gt-csv plugin.
There is no DataStoreFinder method for creating new content. We expect this method to be called from a content creation wizard that already is making use of the DataStoreFactory.

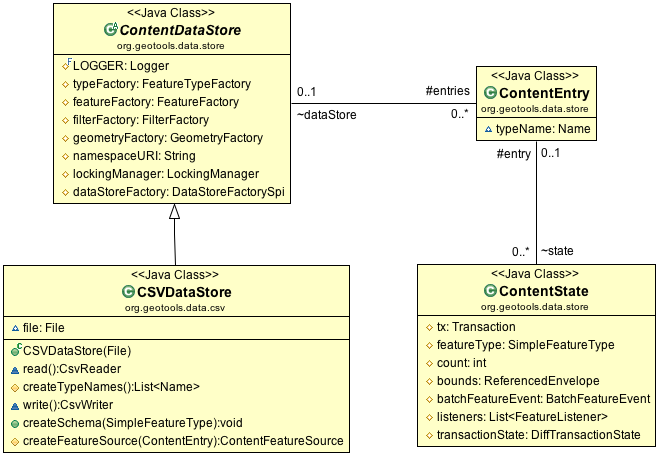

Returning to CSVDataStore we have a number of new methods to override to support write functionality.
Introduce the createSchema( featureType ) method used to set up a new file.
Our CSV format has several limitations:
Add createSchema( featureType ):
@Override
public void createSchema(SimpleFeatureType featureType) throws IOException {
List<String> header = new ArrayList<String>();
GeometryDescriptor geometryDescrptor = featureType.getGeometryDescriptor();
if (geometryDescrptor != null
&& CRS.equalsIgnoreMetadata(DefaultGeographicCRS.WGS84,
geometryDescrptor.getCoordinateReferenceSystem())
&& geometryDescrptor.getType().getBinding().isAssignableFrom(Point.class)) {
header.add("LAT");
header.add("LON");
} else {
throw new IOException("Unable use LAT/LON to represent " + geometryDescrptor);
}
for (AttributeDescriptor descriptor : featureType.getAttributeDescriptors()) {
if (descriptor instanceof GeometryDescriptor)
continue;
header.add(descriptor.getLocalName());
}
// Write out header, producing an empty file of the correct type
CsvWriter writer = new CsvWriter(new FileWriter(file),',');
try {
writer.writeRecord( header.toArray(new String[header.size()]));
}
finally {
writer.close();
}
}
And revise our implementation of createFeatureSource( ContentEntry ).
While we will still return a FeatureSource, we have the option of returning the subclass FeatureStore for read-write files.
The FeatureStore interface provides additional methods allowing the modification of content.
@Override
protected ContentFeatureSource createFeatureSource(ContentEntry entry) throws IOException {
if (file.canWrite()) {
return new CSVFeatureStore(entry, Query.ALL);
} else {
return new CSVFeatureSource(entry, Query.ALL);
}
}
If you would like to review the gt-csv plugin has the completed CSVDataStore.java file.
CSVFFeatureStore has an interesting design constraint:
So what is the trouble? Java only allows single inheritance - forcing us to account for all the work we did reading features in CSVFeatureSource.
Many first generation DataStore implementations practised cut and paste coding, meaning fixes would often get applied in one spot and not another making for a frustrating debugging experience.
Instead we are going to use a delegate CSVFeatureStore, hidden from public view, simply to call its methods for reading. This prevents code duplication, making the code easier to maintain, at the cost of some up front complexity.
We have to play a few tickets to ensure both the CSVFeatureStore and its hidden CSVFeatureSource are always on the same transaction, but other than that this approach is working well.

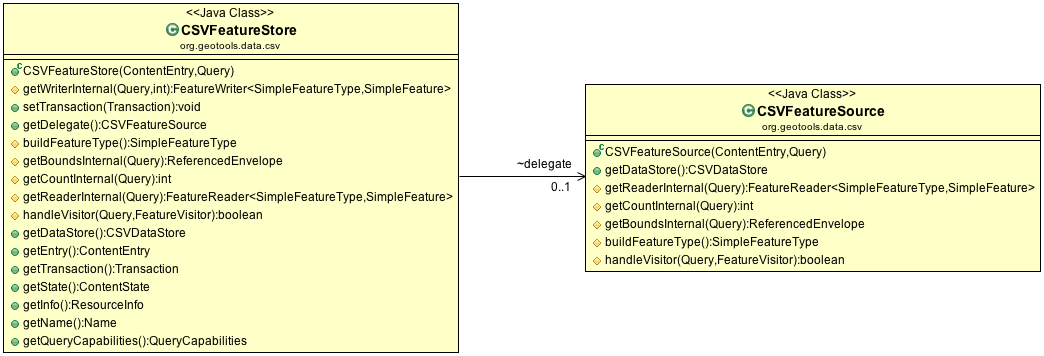

Create CSVFeatureStore:
package org.geotools.tutorial.csv;
Our first responsibility is to implement a CSVFeatureWriter for internal use. Transaction and Event Notification are handled by wrappers applied to our CSVFeatureWriter.
//
// CSVFeatureStore implementations
//
@Override
protected FeatureWriter<SimpleFeatureType, SimpleFeature> getWriterInternal(Query query,
int flags) throws IOException {
return new CSVFeatureWriter(getState(), query);
}
Note
In general the “Gang of Four” decorator pattern is used to layer functionality around the raw FeatureReader and FeatureWriters you provided. This is very similar to the design of the java-io library (where a BufferedInputStream can be wrapped around a raw FileInputStream).
You can control which decorators/wrappers are applied, by as shown in the following table.
Handle Override reprojection canReproject() filtering canFilter() max feature limiting canLimit() sorting canSort() locking canLock()
As an example if your data format supported an attribute index you would be in position to override canSort() to return true if an index was available for sorting.
Next we can set up our delegate, taking care to ensure both use the same Transaction.
/**
* Delegate used for FeatureSource methods (We do this because Java cannot inherit from both ContentFeatureStore and CSVFeatureSource at the same
* time
*/
CSVFeatureSource delegate = new CSVFeatureSource(entry, query) {
@Override
public void setTransaction(Transaction transaction) {
super.setTransaction(transaction);
CSVFeatureStore.this.setTransaction(transaction); // Keep these two implementations on the same transaction
}
};
@Override
public void setTransaction(Transaction transaction) {
super.setTransaction(transaction);
if( delegate.getTransaction() != transaction ){
delegate.setTransaction( transaction );
}
}
Use the delegate to implement the internal ContentDataStore methods.
//
// Internal Delegate Methods
// Implement FeatureSource methods using CSVFeatureSource implementation
//
@Override
protected SimpleFeatureType buildFeatureType() throws IOException {
return delegate.buildFeatureType();
}
@Override
protected ReferencedEnvelope getBoundsInternal(Query query) throws IOException {
return delegate.getBoundsInternal(query);
}
@Override
protected int getCountInternal(Query query) throws IOException {
return delegate.getCountInternal(query);
}
@Override
protected FeatureReader<SimpleFeatureType, SimpleFeature> getReaderInternal(Query query)
throws IOException {
return delegate.getReaderInternal(query);
}
// visitor start
@Override
protected boolean handleVisitor(Query query, FeatureVisitor visitor) throws IOException {
return delegate.handleVisitor(query, visitor);
}
// visitor end
CSVFeatureSource.
@Override
protected boolean handleVisitor(Query query, FeatureVisitor visitor) throws IOException {
return delegate.handleVisitor(query, visitor);
}
Note
Why does this work - because Java visibility rules are insane. Even though the method is marked protected it now has package visibility can be called by its peer CSVFeatureStore.
Use the delegate to implement the public FeatureSource methods.
//
// Public Delegate Methods
// Implement FeatureSource methods using CSVFeatureSource implementation
//
@Override
public CSVDataStore getDataStore() {
return delegate.getDataStore();
}
@Override
public ContentEntry getEntry() {
return delegate.getEntry();
}
public Transaction getTransaction() {
return delegate.getTransaction();
}
public ContentState getState() {
return delegate.getState();
}
public ResourceInfo getInfo() {
return delegate.getInfo();
}
public Name getName() {
return delegate.getName();
}
public QueryCapabilities getQueryCapabilities() {
return delegate.getQueryCapabilities();
}
You can see what this looks like in context by reviewing the CSVFeatureStore.java from the gt-csv plugin.
This class uses an interesting trick to simulate updating a file in place, while still supporting streaming operation. We will be outputting content to a temporary file, leaving the original for concurrent processes such as rendering. When streaming is closed the temporary file is moved into the correct location to effect the change.
To avoid duplicating all the work we put into CSVFeatureReader this code uses the same delegate trick encountered earlier.
A couple common questions:
Q: How do you make a Transaction out of our simple reader?
ContentFeatureSource uses wrappers (or delegates) to process the data on the fly.
Example: So if a Filter is provided the wrapper will skip over features so the user only sees the content they requested?
Q: How do you know what wrappers to use?
ContentFeatureSource checks to see if a wrapper is needed, and if so uses the MaxFetureReader wrapper.
// max feature limit
if ( !canLimit() ) {
if (query.getMaxFeatures() != -1 && query.getMaxFeatures() < Integer.MAX_VALUE ) {
reader = new MaxFeatureReader<SimpleFeatureType, SimpleFeature>(reader, query.getMaxFeatures());
}
}
MaxFeatureWrapper counts the features that are returned, and returns hasNext() false once the configured limit has been reached:
public boolean hasNext() throws IOException {
return (featureReader.hasNext() && (counter < maxFeatures));
}
Q: How does that work with transactions?
ContentState manages a DiffTransactionState used to capture each modification. Each change is recorded by FeatureId (a feature recorded for each add or modification, or null recorded for a delete).
As CSVFeatureReader is used to access the file contents, a wrapper checks the Diff and dynamically modifies the content to match any outstanding edits. When it reaches the end of your file, it keeps going listing any features that were added.
Q: That is fine for transaction independence, what if two FeatueSources are using the same Transaction?
Those two FeatureSources would be configured with the same ContentState, and thus have the same view of the world.
The ContentDataStore API is divided into two levels:
Public classes focused on ease of use for client code - examples include DataStore, FeatureSource, Transaction.
Private classes focused on ease of development for DataStore developers - examples include ContentEntry, ContentEntry, BatchFeatureEvent
Note
Our first generation DataStore implementations tried to produce a similar effect using a series of HashMaps, with suitably scary consequences for code readability. If any additional information is required by your DataStore implementation you are actively encouraged to subclass ContentState.
Q: Wait what about when I am not using a Transaction? How do I get a ContentState?
When the use has not specified a Transaction we default to the use of Transaction.AUTO_COMMIT.
This makes the ContentState recorded for Transaction.AUTO_COMMIT special in that it represents the point of truth on the files current status. The bounds recorded for Transaction.AUTO_COMMIT are the bounds of the file. The number of features recorded for Transaction.AUTO_COMMIT are the number of features recorded in the file.
Now that we have some idea of what is riding on top, lets implement our CSVFeatureWriter:

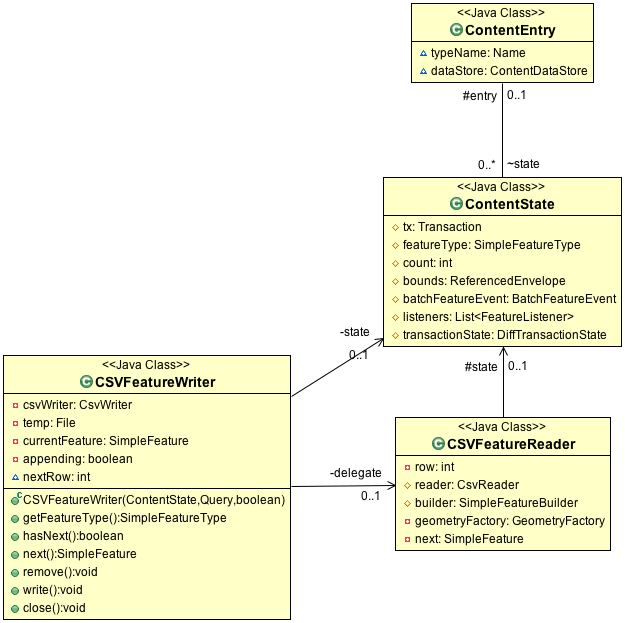

Create the file CSVFeatureWriter.java:
package org.geotools.tutorial.csv;
}
Our construct is responsible for a lot of activities:
Putting all that together:
public CSVFeatureWriter(ContentState state, Query query) throws IOException {
this.state = state;
String typeName = query.getTypeName();
File file = ((CSVDataStore) state.getEntry().getDataStore()).file;
File directory = file.getParentFile();
this.temp = File.createTempFile(typeName + System.currentTimeMillis(), "csv", directory);
this.csvWriter = new CsvWriter(new FileWriter(this.temp), ',');
this.delegate = new CSVFeatureReader(state,query);
this.csvWriter.writeRecord(delegate.reader.getHeaders());
}
Add FeatureWriter.getFeatureType() implementation:
@Override
public SimpleFeatureType getFeatureType() {
return state.getFeatureType();
}
Add hasNext() implementation, making use of delegate before switching over to returning false when appending.
@Override
public boolean hasNext() throws IOException {
if( csvWriter == null ){
return false;
}
if (this.appending) {
return false; // reader has no more contents
}
return delegate.hasNext();
}
The next() method is used for two purposes:
The next() implementation has a couple of interesting tricks:
Here is what that looks like:
@Override
public SimpleFeature next() throws IOException, IllegalArgumentException,
NoSuchElementException {
if( csvWriter == null ){
throw new IOException("FeatureWriter has been closed");
}
if (this.currentFeature != null) {
this.write(); // the previous one was not written, so do it now.
}
try {
if( !appending ){
if( delegate.reader != null && delegate.hasNext() ){
this.currentFeature = delegate.next();
return this.currentFeature;
}
else {
this.appending = true;
}
}
SimpleFeatureType featureType = state.getFeatureType();
String fid = featureType.getTypeName()+"."+nextRow;
Object values[] = DataUtilities.defaultValues( featureType );
this.currentFeature = SimpleFeatureBuilder.build( featureType, values, fid );
return this.currentFeature;
}
catch (IllegalArgumentException invalid ){
throw new IOException("Unable to create feature:"+invalid.getMessage(),invalid);
}
}
Note
There are a large number of utility classes to perform common functions, take a look around before building somehting yourself.
Add remove() implementation, marking the currentFeature as null.
/**
* Mark our {@link #currentFeature} feature as null, it will be skipped when written effectively removing it.
*/
public void remove() throws IOException {
this.currentFeature = null; // just mark it done which means it will not get written out.
}
Add write() implementation:
public void write() throws IOException {
if (this.currentFeature == null) {
return; // current feature has been deleted
}
for (Property property : currentFeature.getProperties()) {
Object value = property.getValue();
if (value == null) {
this.csvWriter.write("");
} else if (value instanceof Point) {
Point point = (Point) value;
this.csvWriter.write(Double.toString(point.getX()));
this.csvWriter.write(Double.toString(point.getY()));
} else {
String txt = value.toString();
this.csvWriter.write(txt);
}
}
this.csvWriter.endRecord();
nextRow++;
this.currentFeature = null; // indicate that it has been written
}
Note
Previous implementations would make a copy of the feature to return. When write was called copy would be compared to the original to see if any change had been made. Why? So that an appropriate event notification could be sent out.
This is another case where a wrapper has been created, and applied by ContentFeatureStore.
Like the constructor the implementation of close() has a number of responsibilities.
To implement close() we must remember to write out any remaining features in the delegate before closing our new file.
The last thing our FeatureWriter must do is replace the existing File with our new one.
@Override
public void close() throws IOException {
if( csvWriter == null ){
throw new IOException("Writer alread closed");
}
if (this.currentFeature != null) {
this.write(); // the previous one was not written, so do it now.
}
// Step 1: Write out remaining contents (if applicable)
while (hasNext()) {
next();
write();
}
csvWriter.close();
csvWriter = null;
if( delegate != null ){
this.delegate.close();
this.delegate = null;
}
// Step 2: Replace file contents
File file = ((CSVDataStore) state.getEntry().getDataStore()).file;
Files.copy(temp.toPath(), file.toPath(), StandardCopyOption.REPLACE_EXISTING );
}
You can see what this looks like in context by reviewing the CSVFeatureWriter.java from the gt-csv plugin.
