Load Balancing & Load Testing Strategies for Web Map Servers

Ian Turton, Astun Technology Ltd.

[email protected]

[email protected]

@ijturton

Summary

• Clustering?
  • are you sure you need this hassle
  • more speed, less fuss
• How to load test your web map server
• Basic Clustering

Why do you need a cluster?

• High Availability (redundancy)
• Scalability (speed)

Did you sort out your data?

GeoServer is fundamentally limited by how fast it can move data from disk to the map image.

So if the data is:

1. on a slow (networked) disk,
2. in a slow format (ASCII) or
3. in a slow database (???)
4. on a slow operating system (windows?)

then no amount of magic will speed things up much.

Did you configure your container?

There are a number of configuration changes you can make to speed up how GeoServer works.

At minimum check out the documentation on running in production

1. Set relevant JVM flags
2. Switch to the Marlin rasterizer (speeds up drawing maps)
3. Install native JAI and ImageIO extensions
4. Turn logging down to Production.

So you need more speed?

Make sure you are using a cache (GeoWebCache, MapProxy, etc.)

This way you only need to draw each piece of map once.

If possible pre-seed your cache down to a reasonable level.

How fast is fast enough?

For this you need to benchmark your existing server using JMeter (or other test suite).

If you are truly paranoid do this at every step with the JVM settings, data reformats etc.

At least before you start clustering for speed.

JMeter

Things we'll need:

1. A representative set of user requests
   • mine existing access log files
   • do some browsing to generate a representative session.
2. Extract the relevant parameters
3. Build a JMeter test plan

Access Logs (a brief introduction)

When ever some one asks for a map from your server a note is made of this in the access log file.

For tomcat this is in /var/log/tomcat8/localhost_access_log.<date>.txt

127.0.0.1 - - [07/Mar/2018:09:06:37 +0000] "GET /geoserver/ HTTP/1.1" 302 -
127.0.0.1 - - [07/Mar/2018:09:06:37 +0000] "GET /geoserver/web/ HTTP/1.1" 302 -
127.0.0.1 - - [07/Mar/2018:09:06:37 +0000] "GET /geoserver/web/?0 HTTP/1.1" 200 4738
127.0.0.1 - - [07/Mar/2018:09:20:24 +0000] "GET /geoserver/web/?0 HTTP/1.1" 200 4715
127.0.0.1 - - [07/Mar/2018:09:20:24 +0000] "GET /geoserver/web/wicket/resource/org.geoserv...
127.0.0.1 - - [07/Mar/2018:09:20:24 +0000] "GET /geoserver/web/wicket/resource/org.geoserv...
127.0.0.1 - - [07/Mar/2018:09:20:24 +0000] "GET /geoserver/web/wicket/resource/org.geoserv...
127.0.0.1 - - [07/Mar/2018:09:25:01 +0000] "GET /geoserver/wms?layers=ras250&styles=&SERVICE...

Extract the interesting bits

Could use awk or grep & sed, but this is hard work if you need to do it often, so automate.

LogfileUtils is a Java program to extract the interesting bits from a standard or Microsoft access log.

java logfileUtils -f /var/log/tomcat8/localhost_access_log.2018-03-06.txt \
-t wms|wmts -c request bbox layers width height layer \
tilematrixset tilematrix tilecol tilerow \
-o /home/ian/code/astun/logfileUtils/log.csv

Testing with JMeter

1. load the provided jmx file.
2. load the csv file

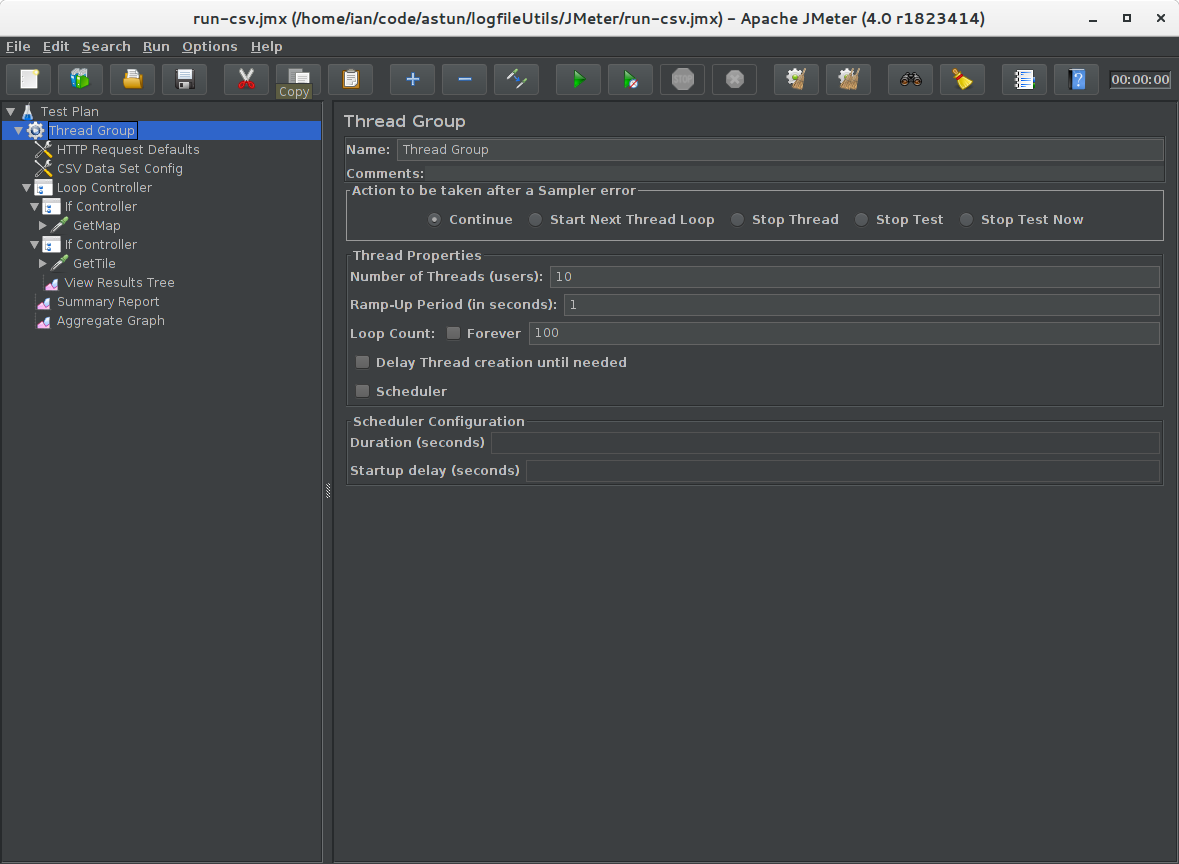

3. adjust number of threads (users)
4. run to check for errors
5. run without GUI for accurate checks

jmeter -n -t [jmx file] -l [results file] -e -o [Path to web report folder]

JMeter

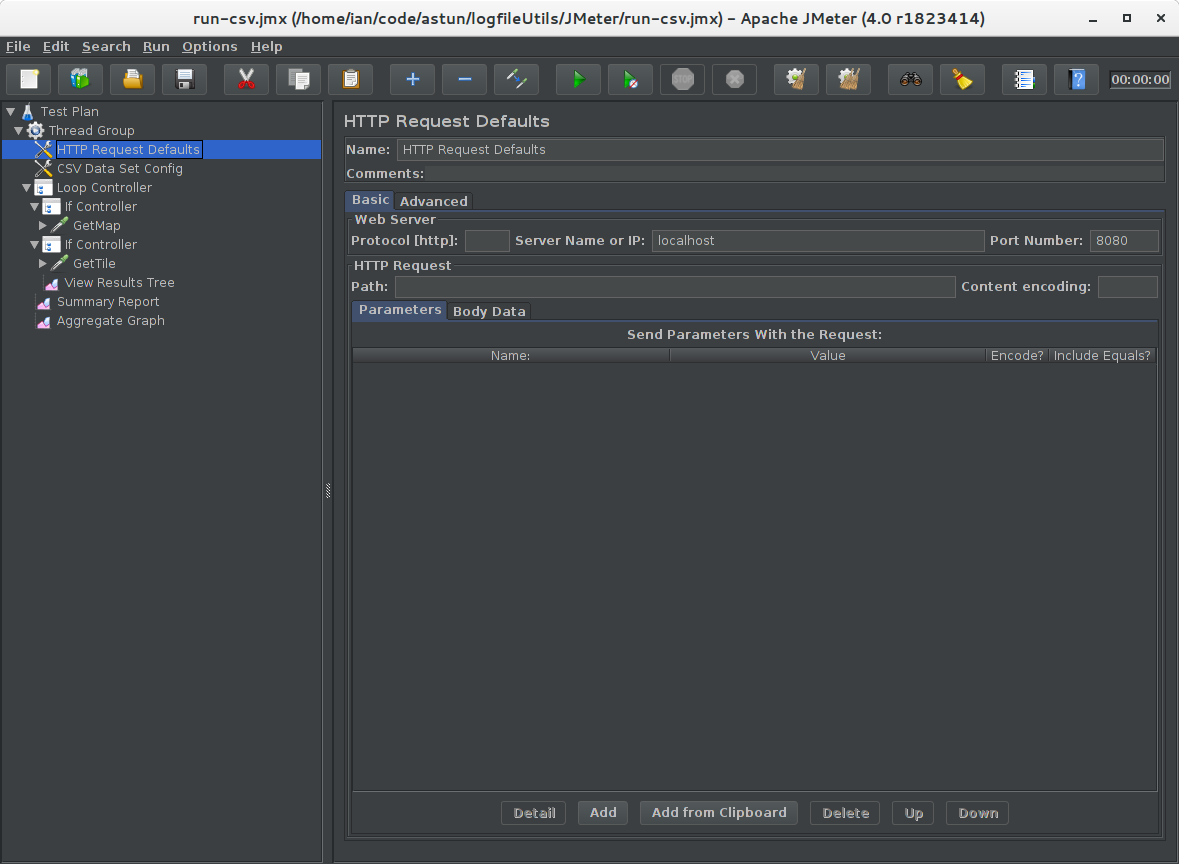

Set Http Settings

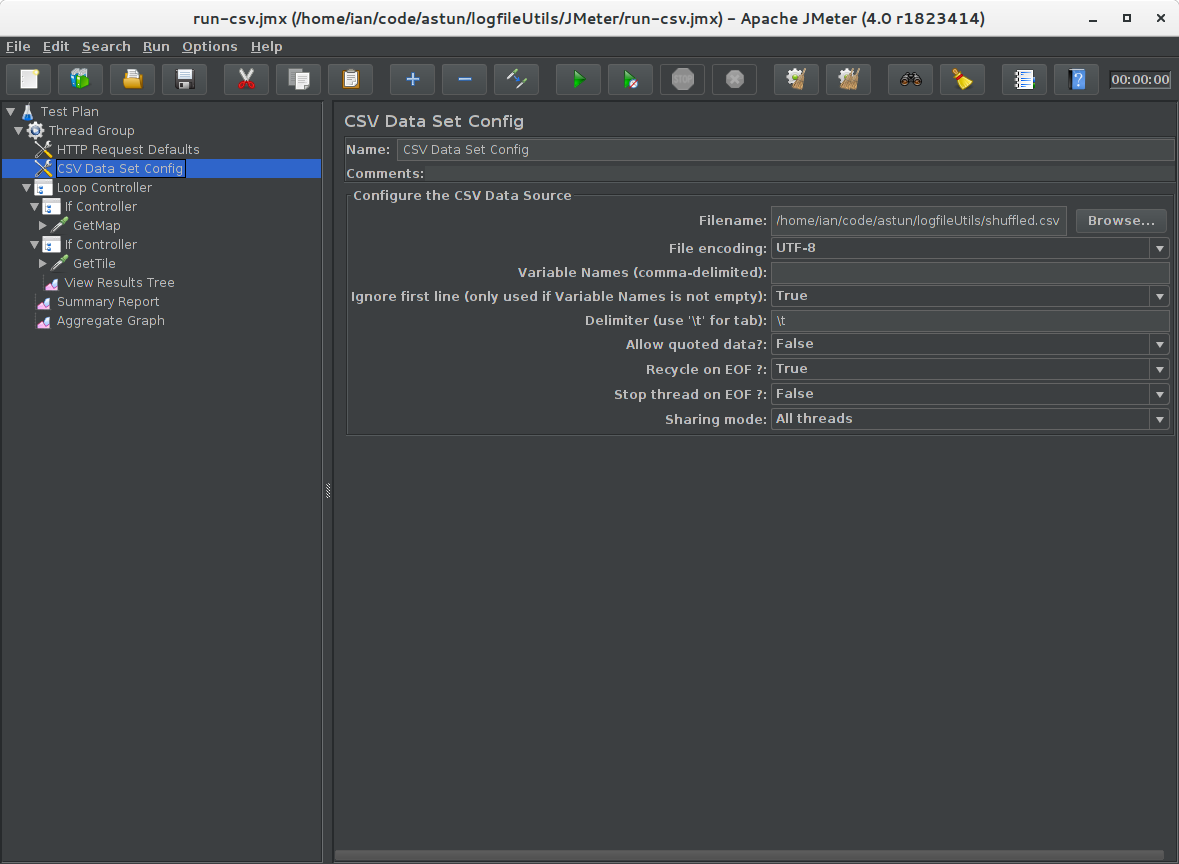

Set CSV File

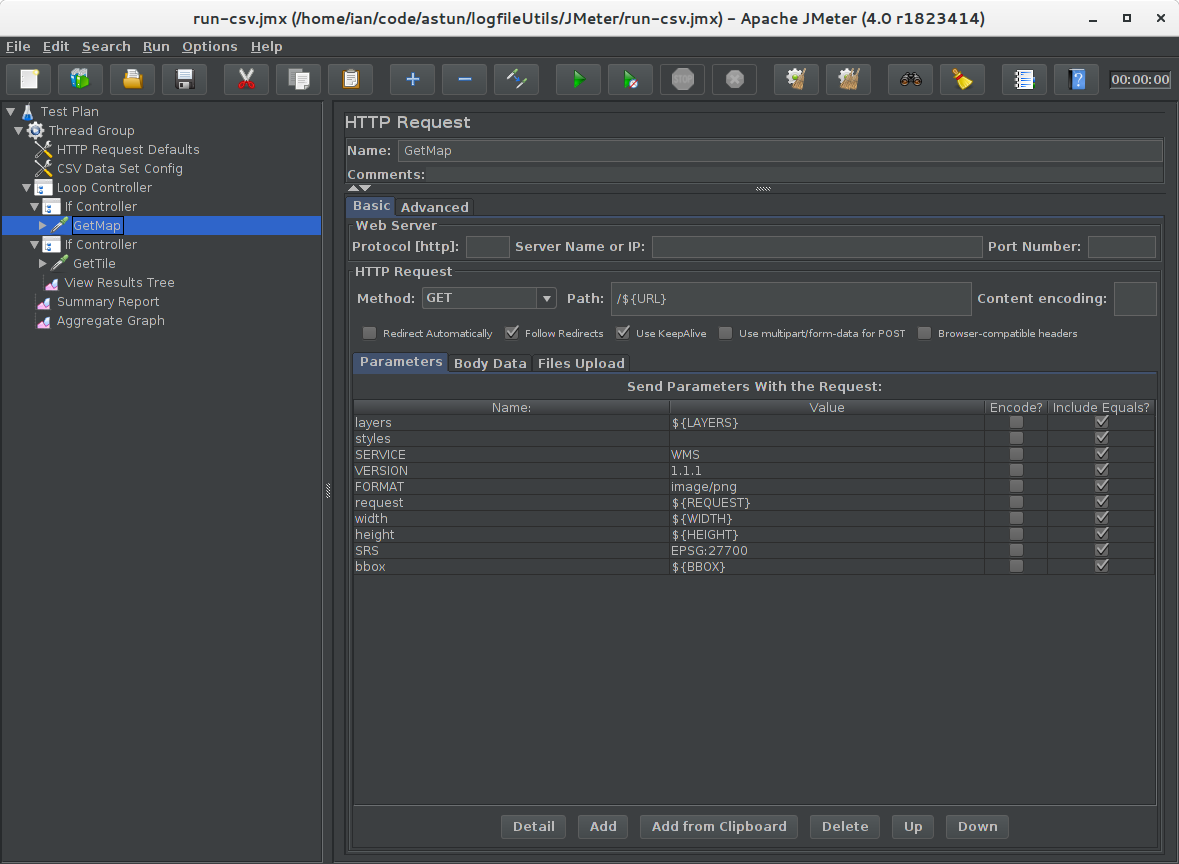

GetMap Request

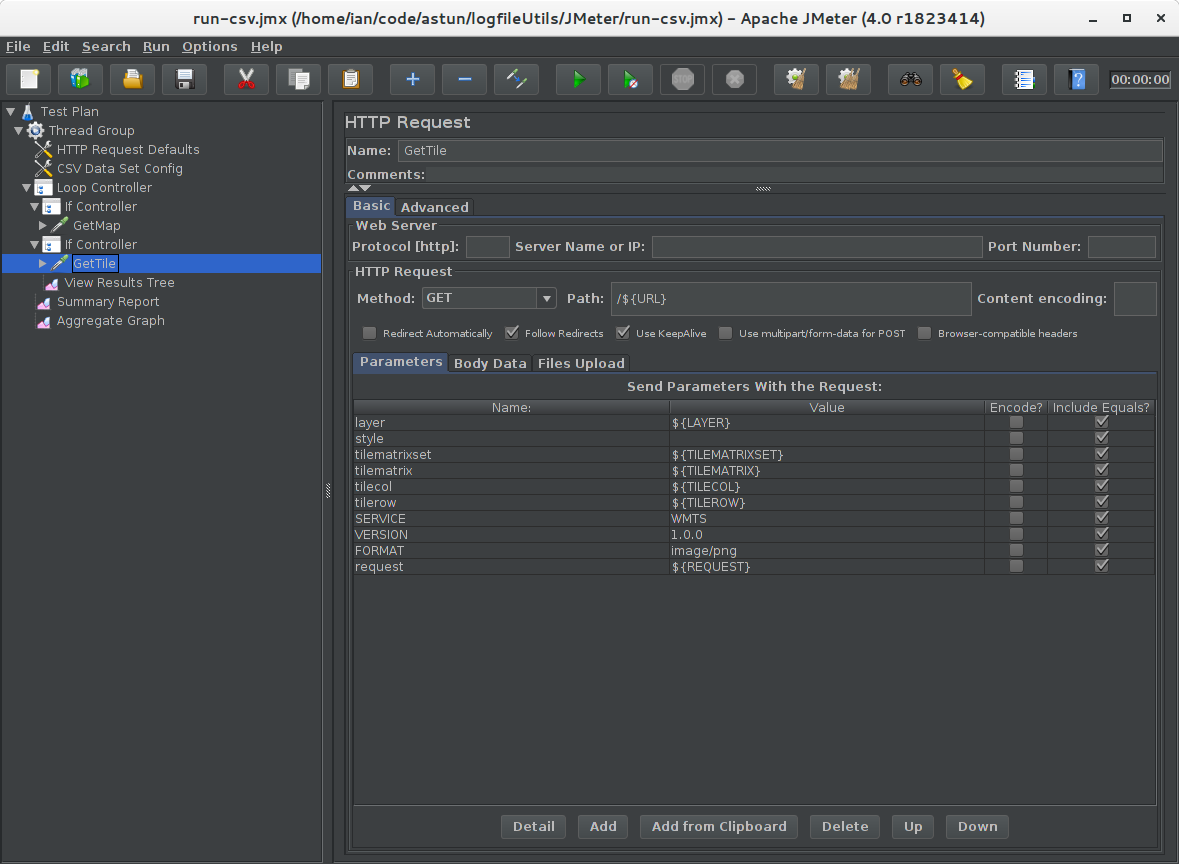

GetTile Request

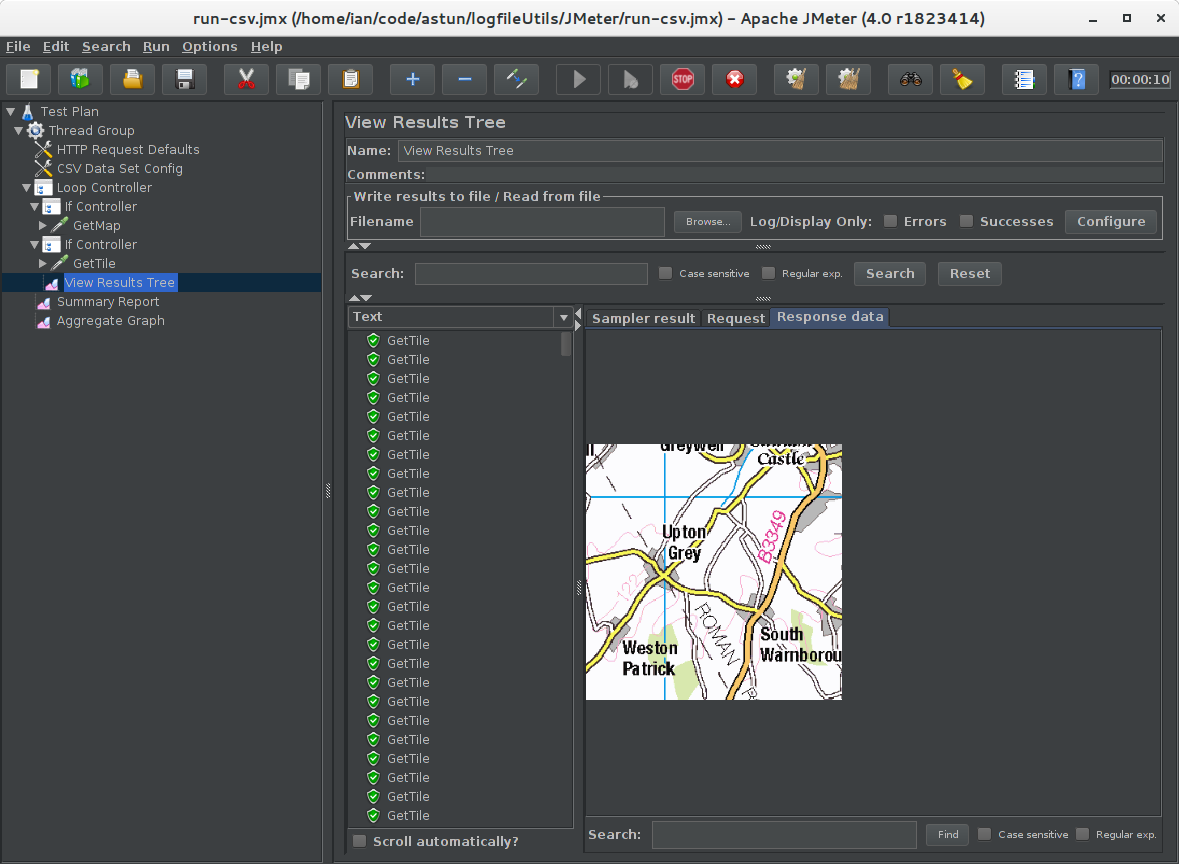

Running

Clustering GeoServer

• Simplest copy a running GeoServer to another machine(s).
• Better to install Active Clustering Extension

Active Clustering

Goto

https://build.geoserver.org/geoserver/2.12.x/community-latest/

and download

geoserver-2.12-SNAPSHOT-jms-cluster-plugin.zip

geoserver-2.12-SNAPSHOT-activeMQ-broker-plugin.zip

Provides a distributed GeoServer control system.

See the GeoSolutions training course for a good introduction and the manual for more details.

Clusters Machine(s)

• Tomcat to run each GeoServer instance + Add AJP routes to server.xml
• Apache Httpd to load balance between instances
  • mod_proxy_balancer
  • mod_proxy_ajp
  • mod_proxy_http

Apache2 Httpd Conf

Add to conf file.

<Proxy balancer://cluster>
  BalancerMember ajp://localhost:8009 route=route1
  BalancerMember ajp://localhost:8010 route=route2
  ProxySet lbmethod=bybusyness
</Proxy>

<Location /geoserver>
  Order allow,deny
  Allow from all
  ProxyPass balancer://cluster/geoserver stickysession=JSESSIONID
</Location>

Run JMeter again

• check that both (all) instances in the cluster are being used.
• Did it go faster
  • Yes - finish
  • No
    • add more caching
    • look for bottle necks
    • add more machines
